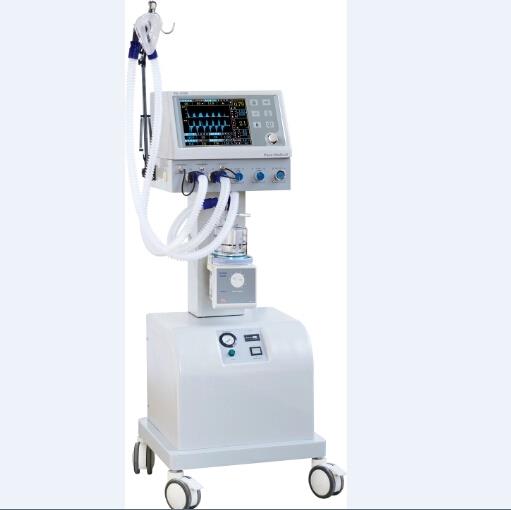

Breathing Respiratory ICU Ventilator Machine
Brand Name:PerlongModel Number:PA-700B
Place of Origin:Jiangsu, China
Quick Details
Brand Name:Perlong
Model Number:PA-700B
Place of Origin:Jiangsu, China
Instrument classification:Class II
Display:10.4 inch high visibility color TFT display
Ventilation Mode:A/C, IPPV, SIPPV, IMV, SIMV, Standby, SPONT MANUAL, PEEP
Minute Volume:Greater than or equal to 18L
Back-up Power Supply:At least 4 hours
Tidal Volume:
Adjustable range: 50-1500ml, Display range: 0-2000ml
Respiratory Rate:1-99bpm
Inspiratory/expiratory (I:E) Ratio:4:1-1:4
PEEP:0-10cmH2O
SIMV Rate:1-20bpm
Inspiratory Pressure Trigger:-10-10cmH2O
Supply Ability
Supply Ability:100 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard package foe export Portany port in China
Lead Time :
Quantity(Sets) | 1 - 10 | >10 |
Est. Time(days) | 5 | To be negotiated |
Specification:
| Model | 700B (Standard Model) | 700B (Advanced Model) |
Display | 10.4 inch high visibility color TFT display | |
Ventilation Mode | A/C, IPPV, SIPPV, IMV, SIMV, Standby, SPONT MANUAL, PEEP | |
Minute Volume | Greater than or equal to 18L | |
Back-up Power Supply | At least 4 hours | |
Tidal Volume | Adjustable range: 50-1500ml, Display range: 0-2000ml | |
Respiratory Rate | 1-99bpm | |
Inspiratory/expiratory (I:E) Ratio | 4:1-1:4 | |
PEEP | 0-10cmH2O | |
SIMV Rate | 1-20bpm | |
Inspiratory Pressure Trigger | .-10-10cmH2O | |
Inspiratory Plateau | Adjustable from 0-50% of inspiratory time | |
Adjustable Oxygen Concentration | 45-100% | 21-100% |
Gas Supply Requirement | 280~600 kPa medical grade oxygen and compressed air supply | |
Pressure Limit | 1.0kPa~6.0kPa | |
Maximum Safe Operating Pressure | ≤6.0kPa | |
Tidal Volume Alarm | Upper Limit: 10~2000ml, Lower Limit: 0~1800ml | |
Airway Pressure Alarm | Upper Limit: 0.1~6kPa, Lower Limit: 0~5kPa | |
Oxygen Concentration Alarm | Upper Limit: 22~100%, Lower Limit: 21~80% | |






Product
Respiratory Machine
